gabion stone retaining wall
Gabion Mesh
Mesh Stone Wall
Stone-filled mesh wall product for landscape, retaining and ecological protection projects.
Description
Product Introduction
Stone-filled mesh wall product for landscape, retaining and ecological protection projects.
Product Introduction
The Mesh Stone Wall is a gabion wall system that combines the natural texture of exposed stone with the strength of a reinforced wire mesh cage. It is built from sturdy wire mesh panels formed into box units, which are filled with selected facing stone so that the rock surface remains visible through the mesh. The panels are produced in either double-twisted hexagonal mesh or rigid welded mesh and are joined with lacing wire, spirals or fastening clips to create a continuous, free-standing wall. Wire is protected with galvanized or PVC coating for long-term durability and a clean appearance. The stone fill gives the wall mass, stability and excellent drainage, while the mesh holds everything firmly in place.
Key Features & Advantages
The Mesh Stone Wall delivers both engineering performance and visual appeal in a single structure: • Natural appearance: exposed stone facing creates an attractive, organic finish suited to landscape and architectural projects. • Structural stability: the stone-filled mass forms a heavy gravity wall that resists earth pressure and erosion. • Free drainage: the permeable stone fill relieves hydrostatic pressure and prevents water build-up behind the wall. • Durability: galvanized or PVC-coated wire resists corrosion for decades of maintenance-free service. • Flexibility: the mesh structure tolerates ground settlement without cracking, unlike rigid concrete walls. • Design freedom: walls can be built straight, stepped or curved, with a choice of facing stone color and size. • Eco-friendly: gaps between stones allow vegetation to establish and wildlife to shelter.
Specifications & Options
Mesh Stone Walls are produced to typical industry parameters and can be customized for each project. Wire diameters are generally available in the 2.0-4.0 mm range, with heavier wires used for selvedge edges and welded structural frames. Hexagonal mesh openings are typically supplied as 60×80, 80×100 or 100×120 mm, while welded panels are available in square or rectangular openings to suit the chosen facing stone. Coating options include heavy galvanizing, Galfan and an additional PVC layer in colors such as grey, green or black for enhanced corrosion resistance and a refined look. Wall height, panel thickness, compartment spacing and unit dimensions are all available options and can be customized to drawings. The product is manufactured to international standards for gabion and wire mesh structures.
Applications & Industries
The Mesh Stone Wall is widely used wherever durable structure and natural aesthetics are required together. Typical applications include landscape and feature walls in parks, gardens, commercial developments and private properties, as well as structural retaining walls for terraced sites, road cuttings and embankments. It is also specified for riverbank and roadbed protection, noise-barrier cores, ecological restoration and erosion control along slopes and waterways. Because the wall is built from a wire cage and locally sourced stone, it suits both high-end architectural schemes and large civil infrastructure works.
Why Choose Zhongman

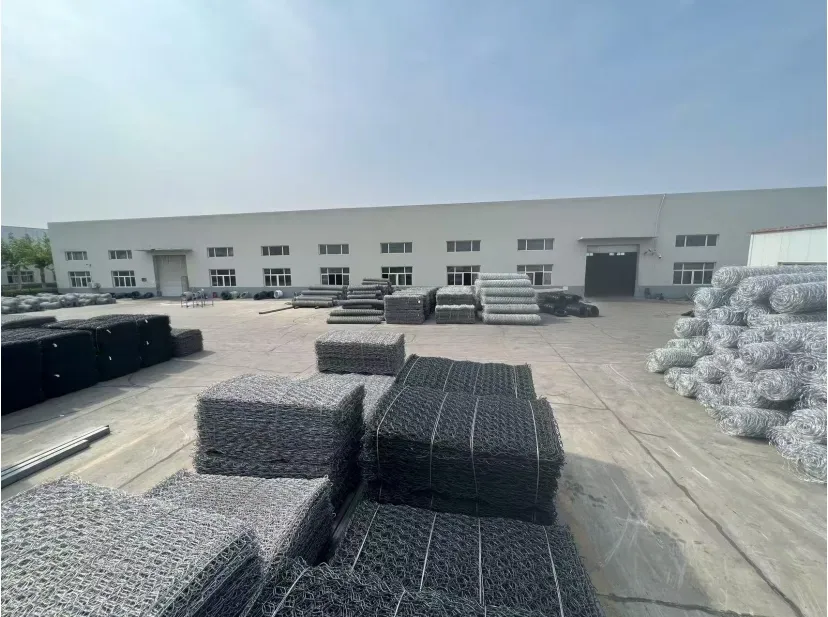

Hebei Zhongman Wire Mesh Co., Ltd. is a professional manufacturer of gabion and mesh stone wall systems, producing both hexagonal and welded mesh in-house for consistent quality and accurate dimensions. We control the complete process from wire drawing and galvanizing to PVC coating and panel fabrication, ensuring strong, corrosion-resistant walls with a clean finish. Every system can be customized in size, mesh type, wire diameter and coating color, and we welcome OEM and private-label cooperation for distributors and contractors. With solid export experience, we manage international packing, documentation and reliable, on-time delivery, while our flexible capacity handles both small and large project volumes. Our products meet international standards and are supported by an experienced technical team.
